This 54" tall Ultra Aluminum Fence 3-Rail UAF-201 TIGHT Picket Top design is perfect for Patios, Gardens, Accent fencing, Security, Children and Pets. This decorative fence looks great in any setting. Posts are 2" X 2" X 84" - Sections have 31-5/8" X 5/8" X 54" picket and 4 - 1-1/8"w X 1" h x 6 ft. long rails. 1-5/8" spacing
Will meet the Boca Code for pools
Can Be Manufactured in Flush Bottom rail or Standard Bottom rail.
At Fence City we do appreciate your order and look forward to helping you with your Ultra Aluminum Fence project.
This Ultra fence
is 54.00 inches high and meets the pool safety codes for most communities.
It is made of residential grade of aluminum and it comes in a picket structure
with 3 rails
and a 1.65 inch space between each picket
and Standard, Flush bottom.
Available in 6 colors.
This fence ships assembled.
This fence is sure to provide a decorative touch to your property.
We're here to help! If you have questions, feel free to call or email us.
Build an instant quote:
Select quantities from the parts below to build an instant quote. Click NEXT to see the discount applied to your quote.
PART
PRICE
QTY
SECTION
section sections are 6 foot in length
Sections or panels are the main component of any fence.
A rackable section can be adjusted to follow the slope of the landscape. Standard panels are fixed rectangles. Rackable panels allow the panel to be adjusted (more like a diamond shape) which allows the panel to adapt to the slope.
0.00
SECTION-ACCESSORY
butterfly-scroll (for each 6 foot section)
Butterfly Scrolls provide a decorative addition to the spaces between the pickets. Prices shown are to add enough butterfly scrolls to fill a section.
165.00
circle (for each 6ft section and each gate leaf)
Circles provide a decorative addition to the spaces between the pickets. Prices shown are to add enough circles to fill a section.
152.00
POST
end post with regular cap and screws included
End posts are configured with holes only one one side of the post which allows the post to attach to one section of fence.
39.00
line post with regular cap and screws included
Line posts are configured with holes on opposite sides of the post which allows the post to attach to two sections of fence so that the fence continues.
39.00
corner post with regular cap and screws included
Corner posts are configured with holes on two adjacent sides of the post which allows the post to attach to two sections of a fence while changing the direction of the fence.
39.00
gate post - heavyweight with regular cap and screws included
Gate posts are reinforced to support the weight of a free-swinging gate.
70.00
blank post
39.00
blank heavyweight post
70.00
POST-ACCESSORY
ball-cap
Ball caps make an attractive addition to the top of each post. Prices shown are per ball-cap.
25.00
welded base flange with cover for line post (Post not Included)
To attach a post to concrete
75.00
welded base flange with cover for corner post (Post not included)
To attach a post to concrete
75.00
welded base flange with cover for end post (Post not included)
To attach a post to concrete
75.00
welded base flange with cover for gate post (Post not included)
To attach a post to concrete
75.00
welded base flange with cover for blank post (Post not included)
To attach a post to concrete
75.00
welded base flange with cover for blank heavyweight post (Post not included)
To attach a post to concrete
75.00
GATE
gate (3.00 ft wide) hardware not included
A single free-swinging section that allows access through the fence.
567.44
gate (3.50 ft wide) hardware not included
A single free-swinging section that allows access through the fence.
587.96
gate (4.00 ft wide) hardware not included
A single free-swinging section that allows access through the fence.
612.75
gate (5.00 ft wide) hardware not included
A single free-swinging section that allows access through the fence.
665.19
gate (6.00 ft wide) hardware not included
A single free-swinging section that allows access through the fence.
712.63
double gate (6.00 ft wide) hardware not included
Two separate free-swinging sections to provide wider access through the fence.
1122.90
double gate (7.00 ft wide) hardware not included
Two separate free-swinging sections to provide wider access through the fence.
1159.10
double gate (8.00 ft wide) hardware not included
Two separate free-swinging sections to provide wider access through the fence.
1238.90
double gate (10.00 ft wide) hardware not included
Two separate free-swinging sections to provide wider access through the fence.
1348.91
double gate (12.00 ft wide) hardware not included
Two separate free-swinging sections to provide wider access through the fence.
1449.23
GATE-FEATURE
Add Arch to a single gate
Select this option to add an arch to a single gate.
200.00
Add Continuous Arch to a double gate
Select this option to add a continous arch across a double gate.
475.00
GATE-ACCESSORY
aluminum-self-closing-hinge (pair)
Aluminum self closing hinges are designed to bring the gate back to a closed position automatically.
58.97
magna-latch
Magna Latch gate latches are a premium upgrade to the standard latch used on a fence gate.
147.80
drop-rod
41.04
ez-lokk-latch
EZ LokkLatch gate hinge
48.80
CONNECTOR
wall-mount (qty 1 each) MUST ORDER 1 PER RAIL
Allows for a section of fence to be mounted to a structure instead of connected to a post.
15.00
adjustable-angle-bracket (qty 1 each) MUST ORDER 1 PER RAIL
Allows rails to be mounted at a straight-vertical or straight horizontal angle. Choose as many bracket(s) as your section has rails.
17.50
Hardware is not included with gates. Be sure to include hinges and latches in your order.
Specifications:
Style: UAF201R3
SKU: 54UAF201R3
Height: 54.00 inches
Minimum Height: 54.00 inches
Number of Rails: 3
Picket Spacing: 1.65 inches
Grade: Residential
Structure: Picket
Bottom: Standard,Flush
Pool safe: Yes
Colors:
Black
Bronze
White
Satin Black
Satin Khaki
Satin White

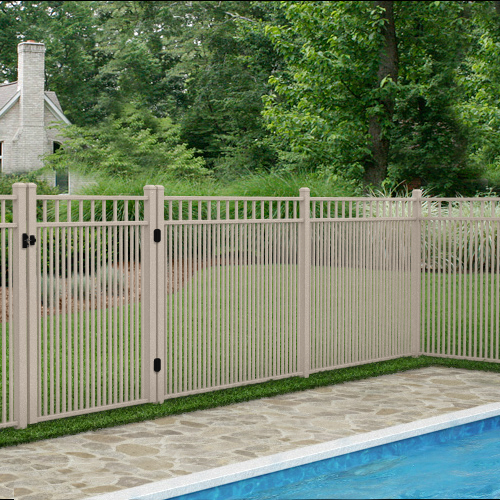

Photos:
The 54-inch tall Ultra Aluminum Fence 3-Rail UAF-201, featuring a tight picket flat-top design, is an exceptional choice for homeowners and businesses seeking durability, safety, and aesthetic appeal. Perfect for patios, gardens, accent fencing, security, and containment for children and pets, this fence combines elegant design with robust construction. Fully BOCA compliant when manufactured with proper specifications, it is ideal for use around swimming pools. Made in America, this high-quality aluminum fence is available from Fence City, your trusted Ultra Aluminum supplier nationwide.
Aluminum Specifications for the UAF-201 Fence
1. Material:
• Made from high-strength aluminum alloy, engineered for maximum durability and resistance to rust and corrosion.
• Lightweight yet incredibly strong, ensuring ease of installation and long-lasting performance.
2. Pickets:
• Dimensions: 31-5/8” x 5/8” x 54”
• Tight 1-5/8” Spacing: Ensures containment for small pets and meets BOCA pool safety standards, preventing access through the fence.
3. Rails:
• Dimensions: 1-1/8” wide x 1” high x 6 ft. long
• Includes 4 horizontal rails for enhanced structural integrity and a polished appearance.
4. Posts:
• Dimensions: 2” x 2” x 84”, providing sturdy support for the fence sections.
• Designed to be set in concrete for long-term stability.
5. Powder-Coated Finish:
• Provides exceptional resistance to chipping, peeling, and fading.
• Available in a variety of colors, including black, bronze, white, green, and beige, ensuring compatibility with any property style.
• Backed by a limited lifetime warranty, reflecting the confidence in the product’s durability.
6. Bottom Rail Options:
• Flush Bottom Rail: Creates a clean, modern look by aligning with the ground.
• Standard Bottom Rail: Leaves a slight gap to improve drainage and reduce debris buildup, ideal for uneven terrain.
Gates: Welded and Screwed Designs
Ultra Aluminum gates are built to outperform the competition, offering superior durability and aesthetic appeal. Available in flat top or arched designs, these gates are both functional and stylish, ensuring a seamless match to the UAF-201 fence.
1. Welded Gates
• Stronger Corners: Welded gates feature reinforced corners for superior strength, preventing sagging or misalignment over time.
• Heavy-Duty Framework: The welded construction ensures the gate can withstand frequent use and heavy traffic without compromising integrity.
2. Screwed Gates
• Cost-Effective Option: Screwed gates offer a reliable and sturdy solution at a more economical price point.
• Precision Assembly: High-quality screws and brackets ensure a secure connection, maintaining the gate’s stability over time.
3. Gate Hardware
• Self-Closing Hinges: These hinges provide convenience and safety by automatically closing the gate after each use, ensuring compliance with pool safety standards.
• Child Safety Latches: Ultra Aluminum gates come equipped with Magna Latches or similar childproof latches, ensuring secure access control for areas like swimming pools or gardens.
Applications for the UAF-201 Fence
1. Swimming Pools:
• Meets BOCA Code compliance with pickets extending to the top rail, ensuring safety for children and pets while maintaining an attractive appearance.
2. Patios and Gardens:
• Adds a decorative boundary to outdoor spaces, protecting landscaping and creating a secure area for relaxation or play.
3. Accent Fencing:
• Enhances walkways, flower beds, and other landscaping features with its stylish and elegant design.
4. Yard Containment:
• Keeps children and pets safe within designated areas while maintaining visibility and airflow.
Why Choose Ultra Aluminum from Fence City?
1. American-Made Quality:
• Ultra Aluminum fences are manufactured in the USA under stringent quality control standards, ensuring superior materials and craftsmanship.
2. Reliable Supplier:
• Fence City provides nationwide distribution and expert cust
