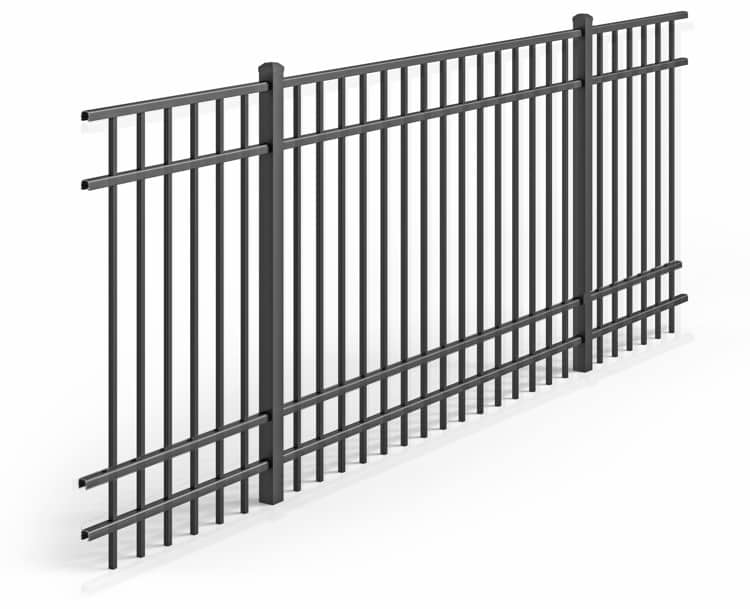

The 60" tall Ultra Aluminum Fence 3-Rail UAF-200 Flat Top is perfect for Fencing in your Pool (must use flush bottom for pools) Yards, Patios, Gardens, Accent fencing, Security, Children and Pets. This decorative fence looks great in any setting. Posts are 2" X 2" X 84" - Sections have 15-5/8" X 5/8" X 60" picket and 3 - 1-1/8"w X 1" h x 6 ft. long rails.
Will meet the Boca Code for pools
Can Be Manufactured in Flush Bottom or Standard Bottom Fence.
At Fence City we do appreciate your order and look forward to helping you with your Ultra Aluminum Fence project.
This Ultra fence
is 60.00 inches high and meets the pool safety codes for most communities.
It is made of residential grade of aluminum and it comes in a picket structure
with 3 rails
and a 3.88 inch space between each picket
and Standard, Flush bottom.
Available in 7 colors.
This fence ships assembled.
Good for decorative, pets, home- this fence is sure to provide a decorative touch to your property.
We're here to help! If you have questions, feel free to call or email us.
Build an instant quote:
Select quantities from the parts below to build an instant quote. Click NEXT to see the discount applied to your quote.
PART
PRICE
QTY
SECTION
section sections are 6 foot in length
Sections or panels are the main component of any fence.
A rackable section can be adjusted to follow the slope of the landscape. Standard panels are fixed rectangles. Rackable panels allow the panel to be adjusted (more like a diamond shape) which allows the panel to adapt to the slope.
0.00
SECTION-ACCESSORY
butterfly-scroll (for each 6 foot section)
Butterfly Scrolls provide a decorative addition to the spaces between the pickets. Prices shown are to add enough butterfly scrolls to fill a section.
165.00
circle (for each 6ft section and each gate leaf)
Circles provide a decorative addition to the spaces between the pickets. Prices shown are to add enough circles to fill a section.
152.00
short-picket
Short pickets are placed at the bottom of a fence to reduce the spacing between the pickets to help protect smaller pets and young children.
90.00
POST
end post with regular cap and screws included
End posts are configured with holes only one one side of the post which allows the post to attach to one section of fence.
39.00
line post with regular cap and screws included
Line posts are configured with holes on opposite sides of the post which allows the post to attach to two sections of fence so that the fence continues.
39.00
corner post with regular cap and screws included
Corner posts are configured with holes on two adjacent sides of the post which allows the post to attach to two sections of a fence while changing the direction of the fence.
39.00
gate post - heavyweight with regular cap and screws included
Gate posts are reinforced to support the weight of a free-swinging gate.
70.00
blank post
39.00
blank heavyweight post
70.00
POST-ACCESSORY
ball-cap
Ball caps make an attractive addition to the top of each post. Prices shown are per ball-cap.
25.00
welded base flange with cover for line post (Post not Included)
To attach a post to concrete
75.00
welded base flange with cover for corner post (Post not included)
To attach a post to concrete
75.00
welded base flange with cover for end post (Post not included)
To attach a post to concrete
75.00
welded base flange with cover for gate post (Post not included)
To attach a post to concrete
75.00
welded base flange with cover for blank post (Post not included)
To attach a post to concrete
75.00
welded base flange with cover for blank heavyweight post (Post not included)
To attach a post to concrete
75.00
GATE
gate (3.00 ft wide) hardware not included
A single free-swinging section that allows access through the fence.
370.79
gate (3.50 ft wide) hardware not included
A single free-swinging section that allows access through the fence.
389.60
gate (4.00 ft wide) hardware not included
A single free-swinging section that allows access through the fence.
407.55
gate (5.00 ft wide) hardware not included
A single free-swinging section that allows access through the fence.
446.31
double gate (6.00 ft wide) hardware not included
Two separate free-swinging sections to provide wider access through the fence.
752.12
double gate (8.00 ft wide) hardware not included
Two separate free-swinging sections to provide wider access through the fence.
866.69
double gate (10.00 ft wide) hardware not included
Two separate free-swinging sections to provide wider access through the fence.
905.16
double gate (11.00 ft wide) hardware not included
Two separate free-swinging sections to provide wider access through the fence.
987.00
GATE-FEATURE
Add Arch to a single gate
Select this option to add an arch to a single gate.
200.00
Add Continuous Arch to a double gate
Select this option to add a continous arch across a double gate.
475.00
GATE-ACCESSORY
aluminum-self-closing-hinge (pair)
Aluminum self closing hinges are designed to bring the gate back to a closed position automatically.
58.97
magna-latch
Magna Latch gate latches are a premium upgrade to the standard latch used on a fence gate.
147.80
drop-rod
41.04
ez-lokk-latch
EZ LokkLatch gate hinge
48.80
CONNECTOR
wall-mount (qty 1 each) MUST ORDER 1 PER RAIL
Allows for a section of fence to be mounted to a structure instead of connected to a post.
15.00
adjustable-angle-bracket (qty 1 each) MUST ORDER 1 PER RAIL
Allows rails to be mounted at a straight-vertical or straight horizontal angle. Choose as many bracket(s) as your section has rails.
17.50
Hardware is not included with gates. Be sure to include hinges and latches in your order.
Specifications:
Style: UAF200R3
SKU: 60UAF200R3
Height: 60.00 inches
Minimum Height: 60.00 inches
Number of Rails: 3
Picket Spacing: 3.88 inches
Grade: Residential
Structure: Picket
Bottom: Standard,Flush
Pool safe: Yes
Colors:
Black
Bronze
White
Satin Black
Satin Bronze
Satin Khaki
Satin White
Photos:
The 60” tall Ultra Aluminum Fence 3-Rail UAF-200 Flat Top is a premium fencing solution that combines elegance, safety, and durability. Designed for multiple uses, including pool enclosures, yards, patios, gardens, and accent fencing, this versatile fence enhances any outdoor setting. Engineered to meet BOCA Code requirements for pools when manufactured with a flush bottom rail, it provides the security and compliance necessary for pool areas. Its durable aluminum construction ensures long-lasting performance, while its sleek, modern design adds visual appeal to any property.
Key Specifications for the UAF-200 Fence
1. Height and Dimensions:
• Fence Height: 60 inches (5 feet) for added safety and security.
• Pickets: 15-5/8” x 5/8” x 60”, providing narrow spacing for compliance and containment.
• Rails: 1-1/8” wide x 1” high x 6 ft. long, offering a clean, symmetrical appearance and structural strength.
• Posts: 2” x 2” x 84”, designed for secure anchoring and stability.
2. BOCA Code Compliance:
• Flush Bottom Rail Required: For pool enclosures, the flush bottom rail ensures there are no gaps at the bottom, providing a secure barrier to prevent entry.
• Meets all BOCA requirements for pool safety, including proper picket spacing and a non-climbable design.
3. Material:
• Made from high-strength aluminum alloy, this fence is lightweight yet strong, resistant to rust, corrosion, and weather damage.
4. Finish:
• Powder-coated for a durable, long-lasting surface that resists chipping, peeling, and fading.
• Available in multiple colors, including black, bronze, white, green, and beige, to suit any property’s aesthetic.
5. Customization:
• Flush Bottom Rail: Required for pools and provides a modern, seamless look.
• Standard Bottom Rail: Leaves a small gap for drainage and debris control, ideal for non-pool applications.
Applications
1. Pool Fencing:
• BOCA-Compliant Safety: Ensures children and pets are protected from unsupervised access to pool areas.
• Flush Bottom Rail Design: Eliminates gaps at the bottom, meeting pool safety standards while maintaining a sleek aesthetic.
2. Yards and Patios:
• Provides a decorative and functional boundary for outdoor spaces, ensuring safety for children and pets.
• Enhances curb appeal while maintaining visibility and airflow.
3. Gardens and Accent Fencing:
• Defines garden spaces while protecting plants and landscaping from wildlife.
• Adds elegance to pathways, walkways, or entry points with its modern flat-top design.
4. Security and Containment:
• Keeps children and pets safely within designated areas.
• Deters unauthorized access while maintaining an open, welcoming appearance.
Advantages of Ultra Aluminum Fences
1. Durability:
• Aluminum construction resists rust, corrosion, and weathering, making it perfect for all climates.
• Powder-coated finish ensures the fence retains its beauty and functionality for years to come.
2. Low Maintenance:
• Requires no painting, staining, or sealing, saving time and money compared to wood or steel alternatives.
• Simple cleaning with soap and water keeps it looking new.
3. Safety and Compliance:
• Tight picket spacing and a 60” height prevent climbing and meet BOCA Code standards for pool fencing.
• Designed to contain children and small pets securely.
4. Aesthetic Appeal:
• The flat-top design provides a clean, modern look that complements both traditional and contemporary properties.
• Available in a range of powder-coated colors to match your style.
Why Choose Ultra Aluminum Fences?
1. High-Quality Construction:
• Manufactured in the USA using premium aluminum alloy and strict quality controls for superior performance.
2. Customization Options:
• Choose between flush or standard bottom rails and a variety of colors to fit your specific needs.
3. Trusted Supplier:
• Supplied by Fence City, a leading distributor of Ultra Aluminum fences nationwide, ensuring reliable service and expert advice.
4. Lif
